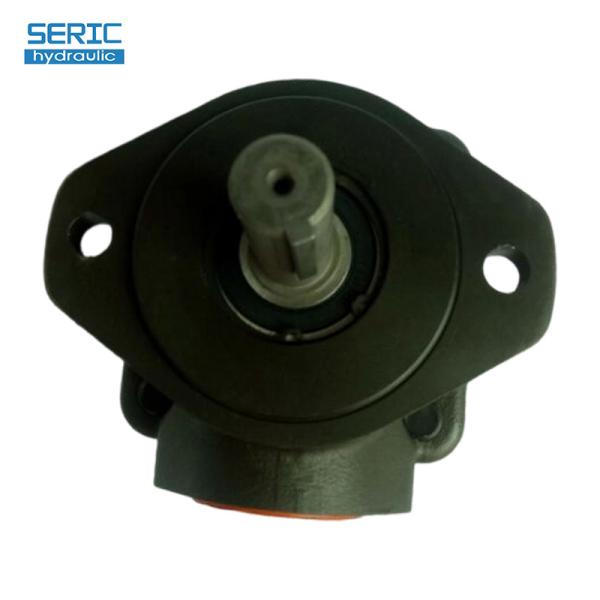

V20 Series Vane Pump Single Pump High Speed Capability
The V20 Vane Pumps are an ideal pump for medium to low-pressure mobile and industrial applications. Its specially designed inlet flow path and compact design gives it uniform oil acceleration and high speed capability.
| Series | U.S. GPM | Displ. (cm³/r) | Max. Operating Pressure (MPa) | Max. Speed (rpm) | Min. Speed (rpm) |
| V20 | 6 | 19.5 | 17.5 | 3400 | 600 |
| 7 | 22.8 | 17.5 | 3000 | ||
| 8 | 26.5 | 17.5 | 2800 | ||
| 9 | 29.7 | 17.5 | 2800 | ||
| 11 | 36.4 | 17.5 | 2500 | ||
| 12 | 39 | 16 | 2400 | ||
| 13 | 42.4 | 16 | 2400 |
| V20 | -1 | P | 11 | P | -1 | C | 11 | R |
| Series | Mounting | Inlet Port Connections | U.S. GPM | Outlet Port Connections | Shafts | Outlet Positions | Design Number | Rotaiton |
| V20 | 1-2 bolt flange 6-2 bolt flange (SAE"B") | P-1 1/4" NPT thd. S-st. thd. | 6,7,8, 9,11, 12,13, | P-1/2 NPT thd. S-st.thd. | 1-str key 11-spline 38-spline 62-SAE A spline | (viewed from cover end of pump) A-Opposite inlet B-900CCW from inlet C-In line with inlet D-900CW from inlet | 11 | (Viewed from shaft end of pump) R-Right hand for clockwise, omit L-left hand for counterclockwise |
