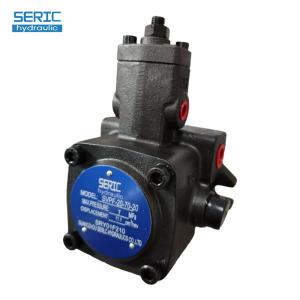

SVPF Series Variable Vane Pump SVPF-20-70-20 Low Noise
It is low-noise, small in size, high in efficiency, long in service life and fast; the flow and pressure can be adjusted , and it is most suitable for small and light-weight equipment such as working machine and shoe-making machine.
| SVPF | -12 | -70 | -B | -20 |
| Model | Flow L/min (1800 rpm) | Max. Pressure kgf/cm2 (MPa) | Shaft Diameter | Design No. |
| SVPF | 12 | 20: 20 kgf/cm2 (2.0 MPa) 35: 35 kgf/cm2 (3.5 MPa) 55: 55 kgf/cm2 (5.5 MPa) 70: 70 kgf/cm2 (7.0 MPa) | Omit:shaft diameter φ12.7 B:shaft diameter Φ15.875 | 20 |
| 20 | ||||
| 30 | shaft diameter: φ19.05 (only for omit) | |||
| 40 |
